Simple Equipments for Heavy Handlings.  The art of reducing human exertion

FTMParm
Arm Type Pneumatic Manipulators

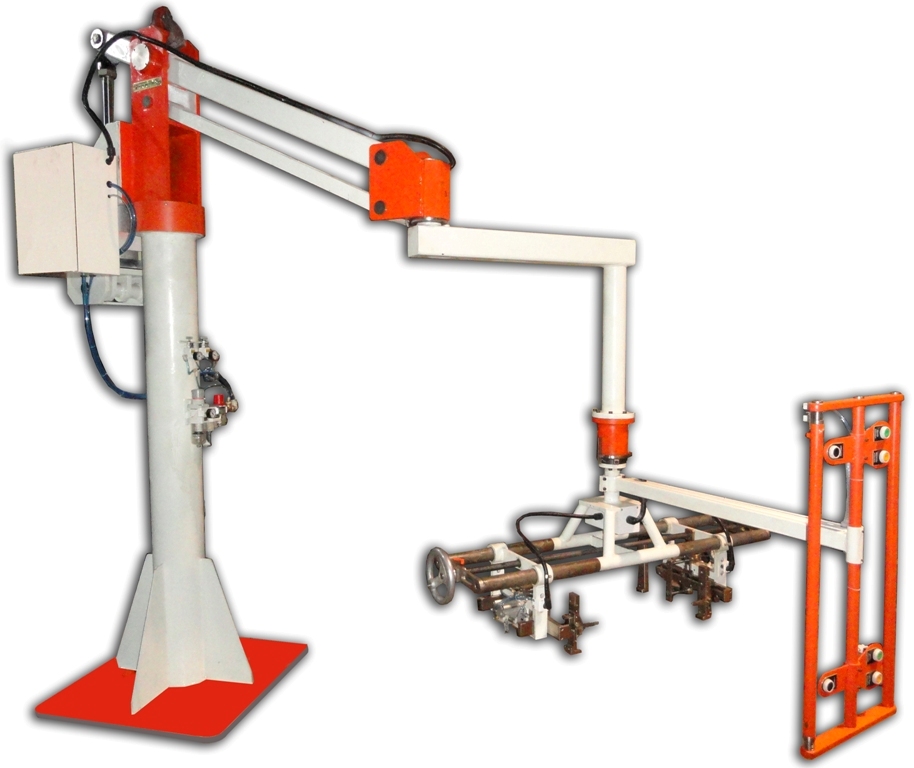

Fixed Column Mounted

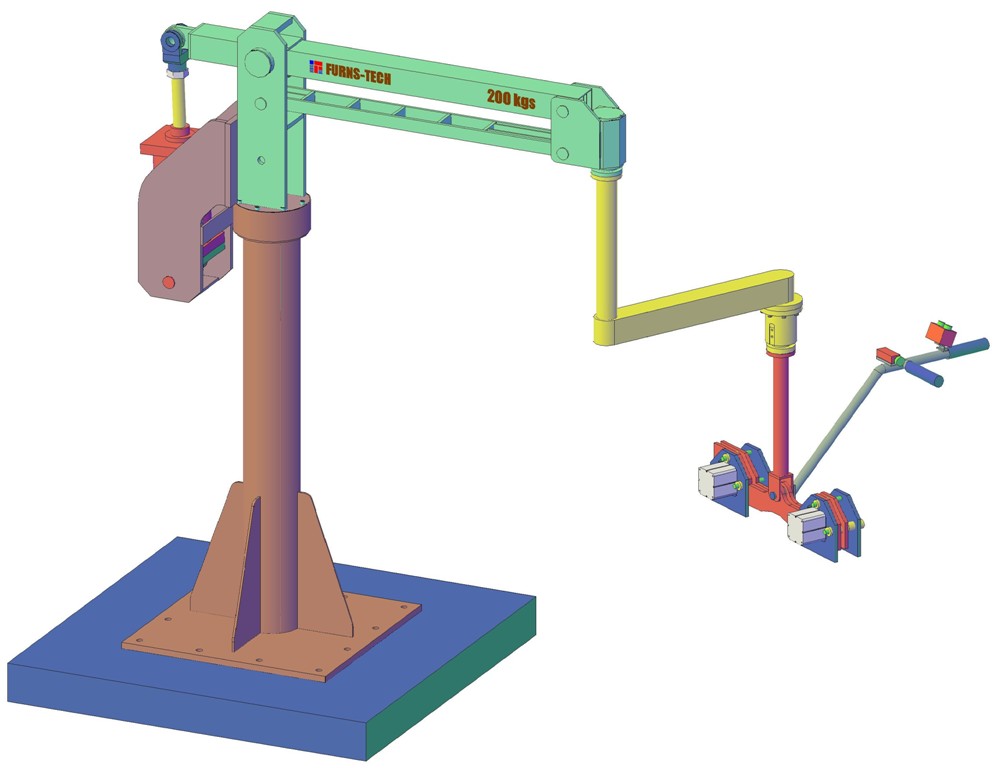

Column Mounted on Base

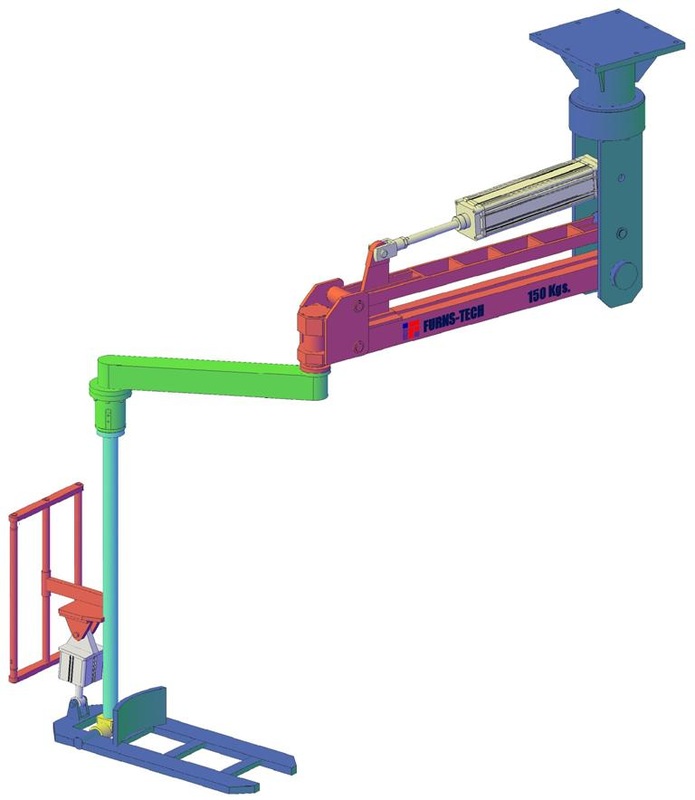

Fixed Overhead

Overhead on Rails
​FTMParm - Arm type Pneumatic Manipulator, equipped with special gripping tools, is suitable to handle many kind of heavy (max 500 kg) and off-set loads in easy and safe way with the minimum effort in good ergonomic and safety conditions.

Operation:
A pneumatic cylinder fed with compressed-air, combined with a transmission lever arm system, provides balance to the load weight applied. The cylinder force is controlled through control buttons and levers. The operator can change the load level simply operating the pneumatic control buttons/levers.

Also this FTMParm manipulators can be installed on column, both mounted fixed to the floor and on transportable self standing base, or overhead fixed or on rails.
​Technical Specifications:
  • Net Capacity: Up to 500 Kg
  • Working Radius: Up to 3500 mm
  • Vertical Stroke: Up to 1800 mm
  • Vertical Lifting speed: 0,5 meters/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
  • Supply: From 5 to 6 Bar of clean, dry and oil free compressed air
​Benefits:
  • Flexible device lift integration
  • Easy work loading & unloading
  • Increase productivity
  • Quiet operation
  • Reduce operator fatigue

FTMParm 050

FTMParm 100

FTMParm 200

FTMParm 300

FTMParm 400
FTMParm 500

Work Gripping System
​Up/Down Braking System
Axis Braking System
Work Tilting System
In case of pressure failure slow descent till the floor
Other Products

Hydraulic Manipulators

Motorized Manipulators

Customized Manipulators

Gripping Tools
