Simple Equipments for Heavy Handlings.  The art of reducing human exertion

FTMHarm
Arm Type Hydraulic Manipulators

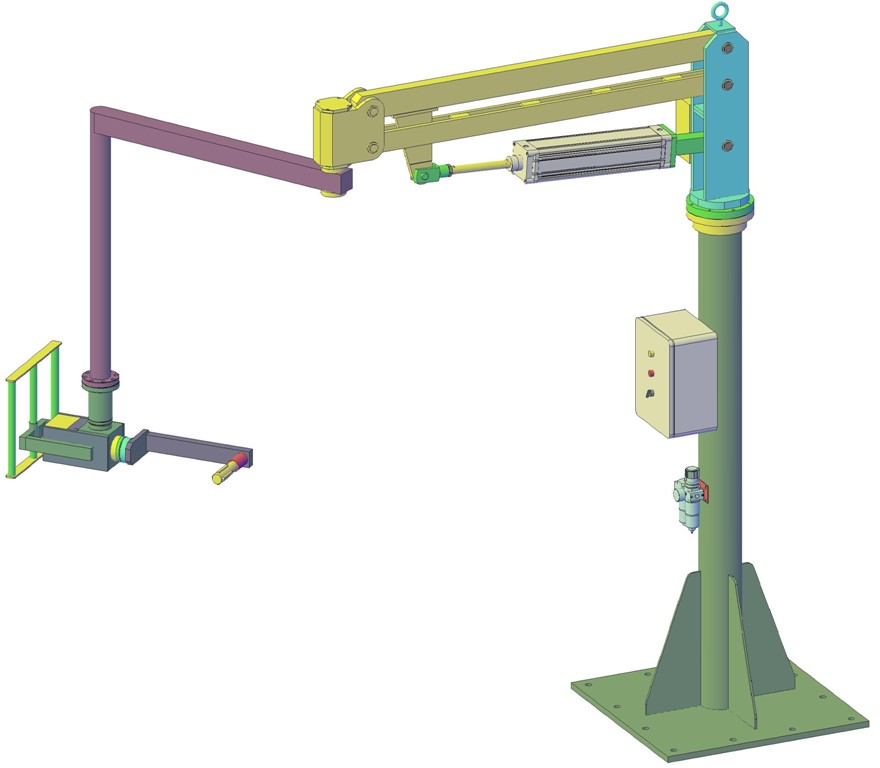

Fixed Column Mounted

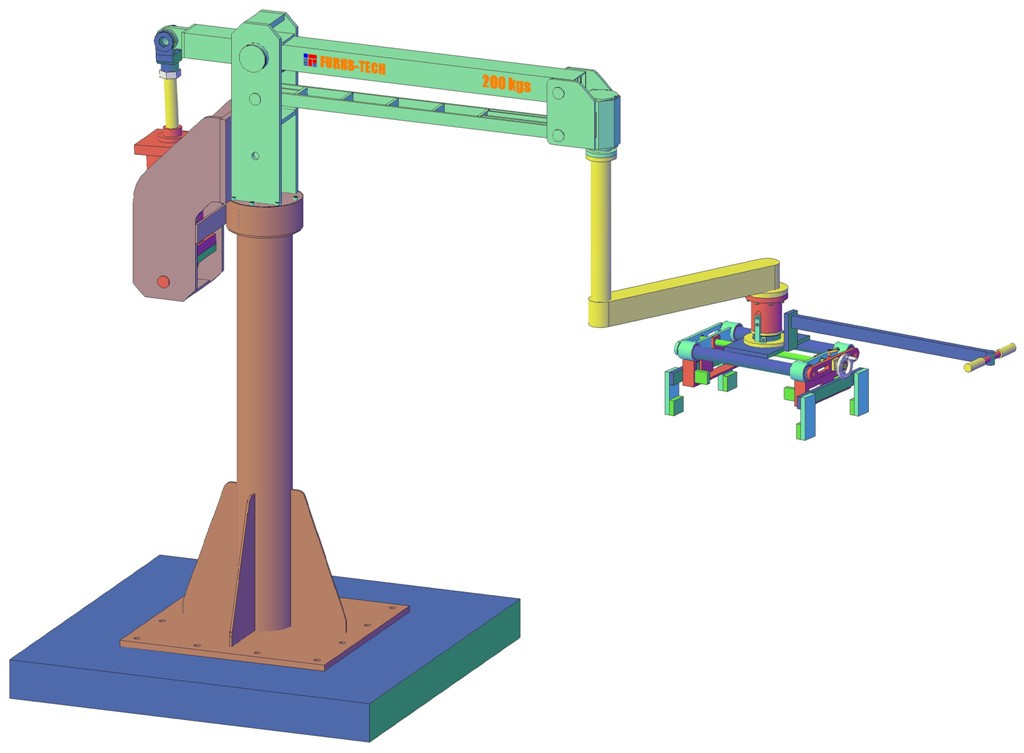

Column Mounted on Base

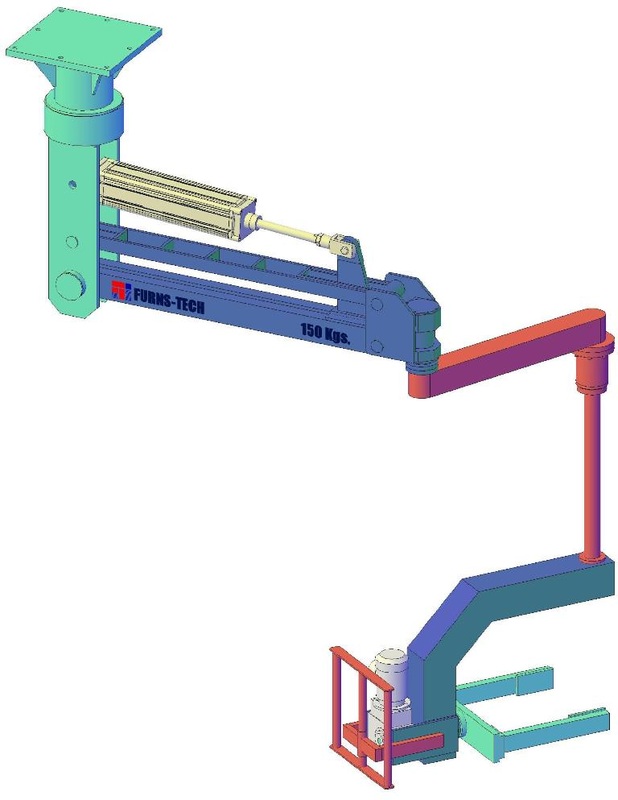

Fixed Overhead
​FTMHarm - Arm type Hydraulic Manipulators, equipped with special gripping tools, is suitable to handle many kind of heavy (max 700 kg) and off-set loads in easy and safe way with the minimum effort in good ergonomic and safety conditions.

Operation:
A Hydraulic cylinder, combined with a transmission lever arm system, provides balance to the load weight applied. The cylinder force is controlled through control buttons and levers. The operator can change the load level simply operating the Hydraulic control buttons/levers.

Also this FTMHarm manipulators can be installed on column, both mounted fixed to the floor and transportable self standing base and Fixed overhead.
Technical Specifications:
  • Net Capacity: Up to 700 Kg
  • Working Radius: Up to 3000 mm
  • Vertical Stroke: Up to 1800 mm
  • Vertical Lifting speed: Max 100 mm/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
​Benefits:
  • Flexible device lift integration
  • Easy work loading & unloading
  • Increase productivity
  • Reduce operator fatigue
  • Quiet operation

FTMHarm 200

FTMHarm 400

FTMHarm 500

FTMHarm 700

Work Gripping System
Axis Braking System
Work Tilting System
