Simple Equipments for Heavy Handlings.  The art of reducing human exertion

FTMPlift
Lift Type Pneumatic Manipulators

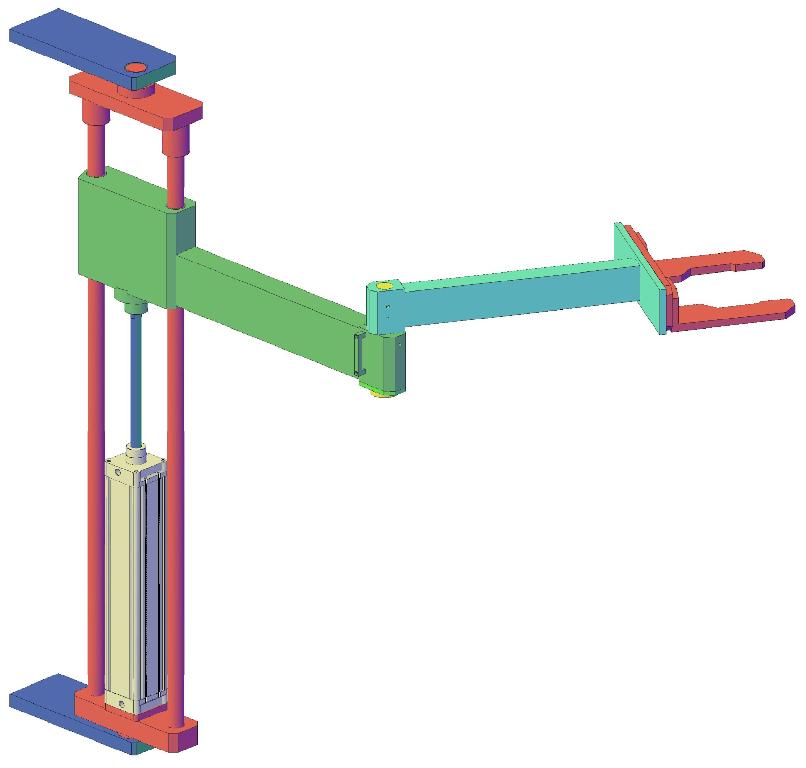

 Flange Mounted on Wall

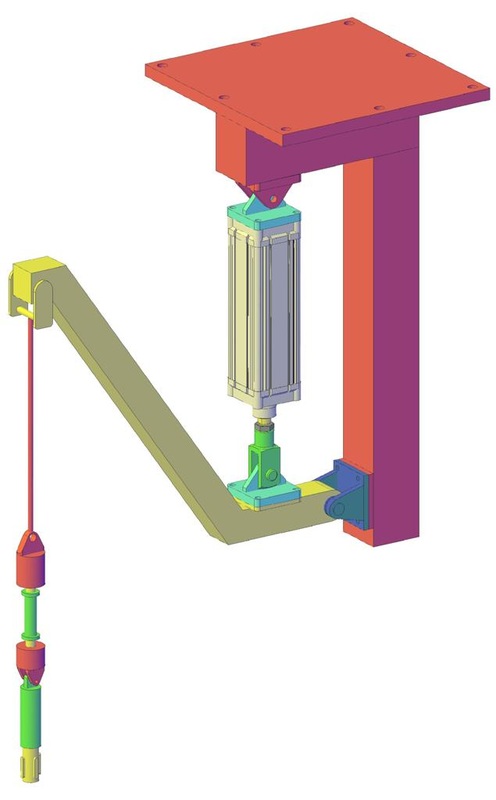

Fixed Overhaed

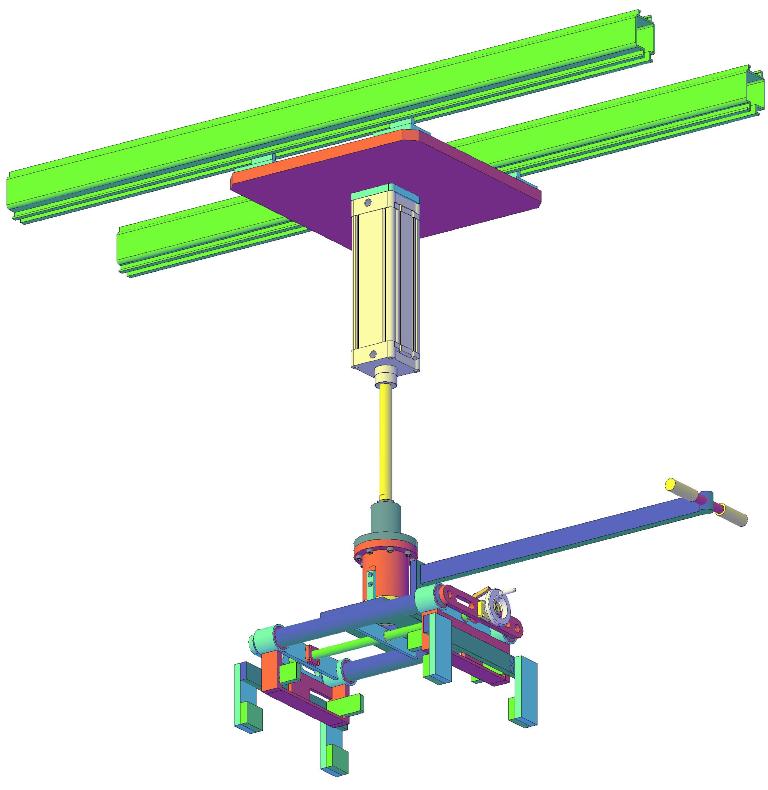

Overhead on Rails
​FTMPlift –Lift type pneumatic manipulators are simple and economical design, suitable for heavy work loading and unloading purpose for machineries like CNC Turning, Milling, Grinding and Presses.
​
Operation:
A pneumatic cylinder fed with compressed-air, combined with a transmission lever arm system, provides balance to the load weight applied. The cylinder force is controlled through control buttons and levers. The operator can change the load level simply operating the pneumatic control buttons/levers.

​FTMPlift  is provided with transmission system combined with a Pneumatic Cylinder to handle loads up to 500 kgs. and thanks to the special gripping tools that can be integrated.

Also this FTMPlift manipulators can be installed on Overhead, both mounted fixed to the ceiling and on Rails or Flange mounted on wall.
  ​Technical Specifications:
  • Net Capacity: Up to 500 Kg
  • Working Radius: Up to 2000 mm
  • Vertical Stroke: Up to 1000 mm
  • Vertical Lifting speed: 0,2 to 0,5 meters/second
  • Column Axle: Max 300°  rotation
  • Intermediate Axle: Max 300° rotation
  • Supply: From 5 to 6 Bar of clean, dry and oil free compressed air
​Benefits:
  • Flexible device lift integration
  • Easy work loading & unloading
  • Reduce operator fatigue
  • Increase productivity
  • Quiet operation

FTMPlift 50

FTMPlift 100

FTMPlift 200

FTMPlift 300

FTMPlift 400
​FTMPlift 500

Work Gripping System
​Up/Down Braking System

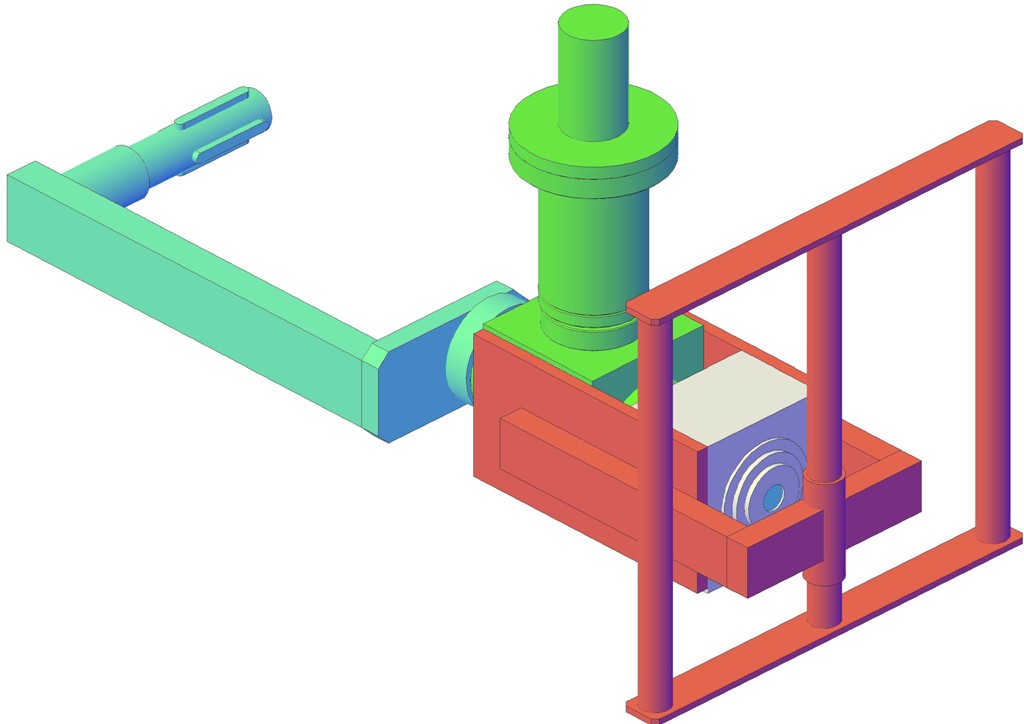

Work Tilting System
In case of pressure failure slow descent till the floor
